Haier

Undercounter Lab/Pharmacy Refrigerators

Reliability and Key Features

  • High efficiency specialty compressor with known field reliability
  • Permanently lubricated cooling fan for safety and longevity
  • Forced-air cooling with optimized air distribution system designed to achieve maximum temperature uniformity and stability
  • Optimized refrigeration system design for more effective cooling and speedy recovery
  • Temperature variation within ±3°C
  • Adjustable temperature range 2~8°C
  • Microprocessor control, digital display, and temperature adjustment with an increment of 1°C
  • Large digital display screen
  • Wide voltage tolerance suitable for unstable voltage supply
  • Designed for ambient temperature 10~32°C with humidity below 60%

Safety

  • Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light
  • Capable of alerting failures due to high and low temperature, sensor error, door ajar, remote alarm, and power loss

Ergonomic

  • Safety lock to prevent unauthorized access
  • Interior LED light

Warranty Information: 1 year on all parts and 3 years on the compressor.

HYC-118 HYC-118A
Technical Data
Cabinet Type Upright Upright
Climate Class N N
Cooling Type Forced air cooling Forced air cooling
Defrost Mode Auto Auto
Refrigerant CFC-Free CFC-Free
Noise Level (dB) 30 30
Performance
Temperature Range (°C) 2~8 2~8
Control
Controller Microprocessor Microprocessor
Display LED LED
Dimensions
Capacity (L/cu.ft.) 118/4.2 118/4.2
Net/Gross Weight (lbs) (approx) 101.4/112.4 90.4/101.4
Interior Dimensions (WxDxH) 20.2x16.3x25.1" 20.2x16.3x25.1"
Exterior Dimensions (WxDxH) 23.5x25.4x32.9" 23.5x25.4x32.9"
Functions
High/Low Temperature Y Y
Remote Alarm Y Y
Power Failure N/A N/A
Sensor Error Y Y
Low Battery N/A N/A
Door Ajar Y Y
Accessories
Caster N/A N/A
Foot Y Y
Test Hole N/A Y
Shelves/Inner Doors 3/- 3/-

Product Detail

HA-HYC-118

Mfr. Number: HYC-118 (115V/60Hz)

Description: 2-8°C Undercounter Solid Door Lab Refrigerator, 118L / 4.2 cu ft, 115V/60Hz

1/EA

HA-HYC-118A

Mfr. Number: HYC-118A (115V/60Hz)

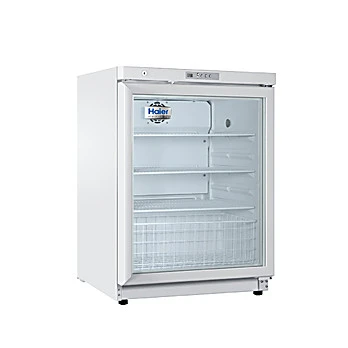

Description: 2-8°C Undercounter Glass Door Lab Refrigerator, 118L / 4.2 cu ft, 115V/60Hz

1/EA
