Benchmark Scientific

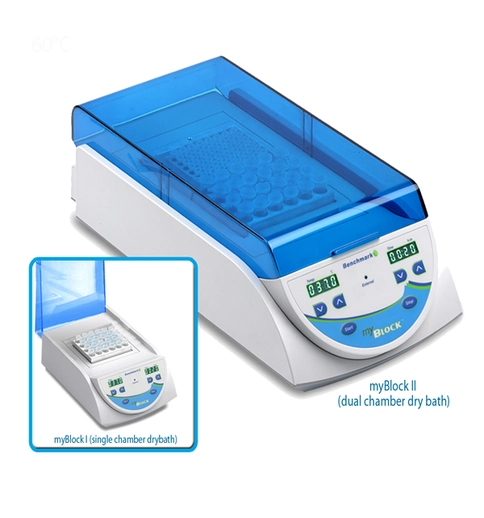

MyBlock Series Dry Baths

Benchmark's myBlock series is a "next generation" product line that introduces several major
advantages over traditional dry baths. They are the first digital dry baths to include advanced
microprocessor controls, timed or continuous operation and a removable hinged lid. In addition, an
optional external temperature feedback probe can be positioned directly inside a sample tube,
providing real-time control and monitoring of actual sample temperature.

The myBlock's transparent lid helps to promote better uniformity and minimize temperature
stratification in the block by maintaining a warm air jacket layer. It also helps to reduce energy
consumption by minimizing heat loss to the environment. The hinged lid can be flipped open (to the
rear), or easily removed (lifted off) to accommodate taller tubes.

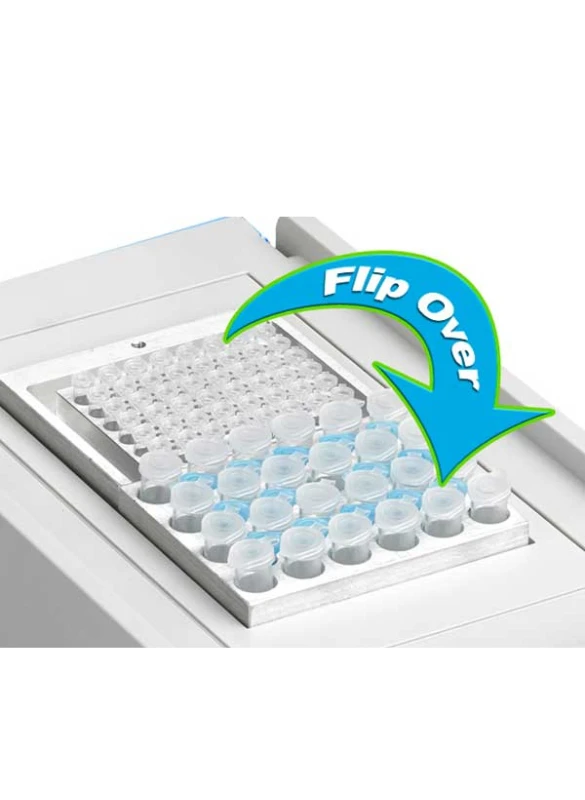

Both the single and dual block models can be ordered in a configuration that includes our unique
Quick-Flip™ blocks. These universal blocks accept tubes from 0.5 to 2.0ml and, with just a quick flip
to the other side, accomodate 0.2ml tubes, PCR strips or (in the dual block model only) a PCR plate.
Other blocks are available for tubes up to 50ml

TECH DATA :



Temperature Range:             Ambient +5° to 105°C

Temperature Accuracy:        +0.1°C

Temperature Uniformity :     ± 0.3°C

Temperature Increments:     0.1°C

Timer:                                   1 min. to 48 hours / continuous

Dimensions (Single):            7 x 10 x 5 in. / 18 x 25 x 13 cm

Dimensions (Dual):              Dimensions (Dual)

Weight:                                8 lbs / 10 lbs

Warranty:                            2 years

Electrical:                            120V or 230V 50-60Hz



Product Detail

BM-BSH5001

Mfr. Number: BSH5001

Description: myBlock I, one chamber, without blocks 115V

1/EA

BM- BSH5001-1B

Mfr. Number: BSH5001-1B

Description: myBlock I, one chamber, without blocks 230V

1/EA

BM-BSH5001-1B

Mfr. Number: BSH5001-1B

Description: myBlock I, one chamber, with 1x BSWCMB 115V

1/EA

BM- BSH5001-1B-E

Mfr. Number: BSH5001-1B-E

Description: myBlock I, one chamber, with 1x BSWCMB 230V

1/EA

BM-BSH5002

Mfr. Number: BSH5002

Description: myBlock II, two chamber, without blocks 115V

1/EA

BM-BSH5002-2B

Mfr. Number: BSH5002-2B

Description: myBlock II, two chamber, with 1x BSWCMB 115V

1/EA

BM-BSH5002-2B-E

Mfr. Number: BSH5002-2B-E

Description: myBlock II, two chamber, with 1x BSWCMB 230V

1/EA

BM-BSH5002-E

Mfr. Number: BSH5002-E

Description: myBlock II, two chamber, without blocks 230V

1/EA
