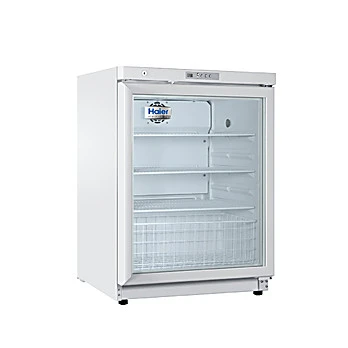

Undercounter Lab/Pharmacy Refrigerators
Reliability and Key Features
- High efficiency specialty compressor with known field reliability
- Permanently lubricated cooling fan for safety and longevity
- Forced-air cooling with optimized air distribution system designed to achieve maximum temperature uniformity and stability
- Optimized refrigeration system design for more effective cooling and speedy recovery
- Temperature variation within ±3°C
- Adjustable temperature range 2~8°C
- Microprocessor control, digital display, and temperature adjustment with an increment of 1°C
- Large digital display screen
- Wide voltage tolerance suitable for unstable voltage supply
- Designed for ambient temperature 10~32°C with humidity below 60%
Safety
- Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light
- Capable of alerting failures due to high and low temperature, sensor error, door ajar, remote alarm, and power loss
Ergonomic
- Safety lock to prevent unauthorized access
- Interior LED light
Warranty Information: 1 year on all parts and 3 years on the compressor.
|
HYC-118
|
HYC-118A
|
|||
| Technical Data | ||||
| Cabinet Type |
Upright
|
Upright
|
||
| Climate Class |
N
|
N
|
||
| Cooling Type |
Forced air cooling
|
Forced air cooling
|
||
| Defrost Mode |
Auto
|
Auto
|
||
| Refrigerant |
CFC-Free
|
CFC-Free
|
||
| Noise Lever (dB) |
30
|
30
|
||
| Peformance | ||||
| Temperature Range (°C) |
2~8
|
2~8
|
||
| Control | ||||
| Controller |
Microprocessor
|
Microprocessor
|
||
| Display |
LED
|
LED
|
||
| Dimensions | ||||
| Capacity (L/cu.ft.) |
118/4.2
|
118/4.2
|
||
| Net/Gross Weight (lbs) (approx) |
101.4/112.4
|
90.4/101.4
|
||
| Interior Dimensions (WxDxH) |
20.2x16.3x25.1"
|
20.2x16.3x25.1"
|
||
| Exterior Dimensions (WxDxH) |
23.5x25.4x32.9"
|
23.5x25.4x32.9"
|
||
| Functions |
|
|
||
| High/Low Temperature |
Y
|
Y
|
||
| Remote Alarm |
Y
|
Y
|
||
| Power Failure |
N/A
|
N/A
|
||
| Sensor Error |
Y
|
Y
|
||
| Low Battery |
N/A
|
N/A
|
||
| Door Ajar |
Y
|
Y
|
||
| Accessories |
|
|
||
| Caster |
N/A
|
N/A
|
||
| Foot |
Y
|
Y
|
||
| Test Hole |
N/A
|
Y
|
||
| Shelves/Inner Doors |
3/-
|
3/-
|
||
